toddler Mobility Trainer

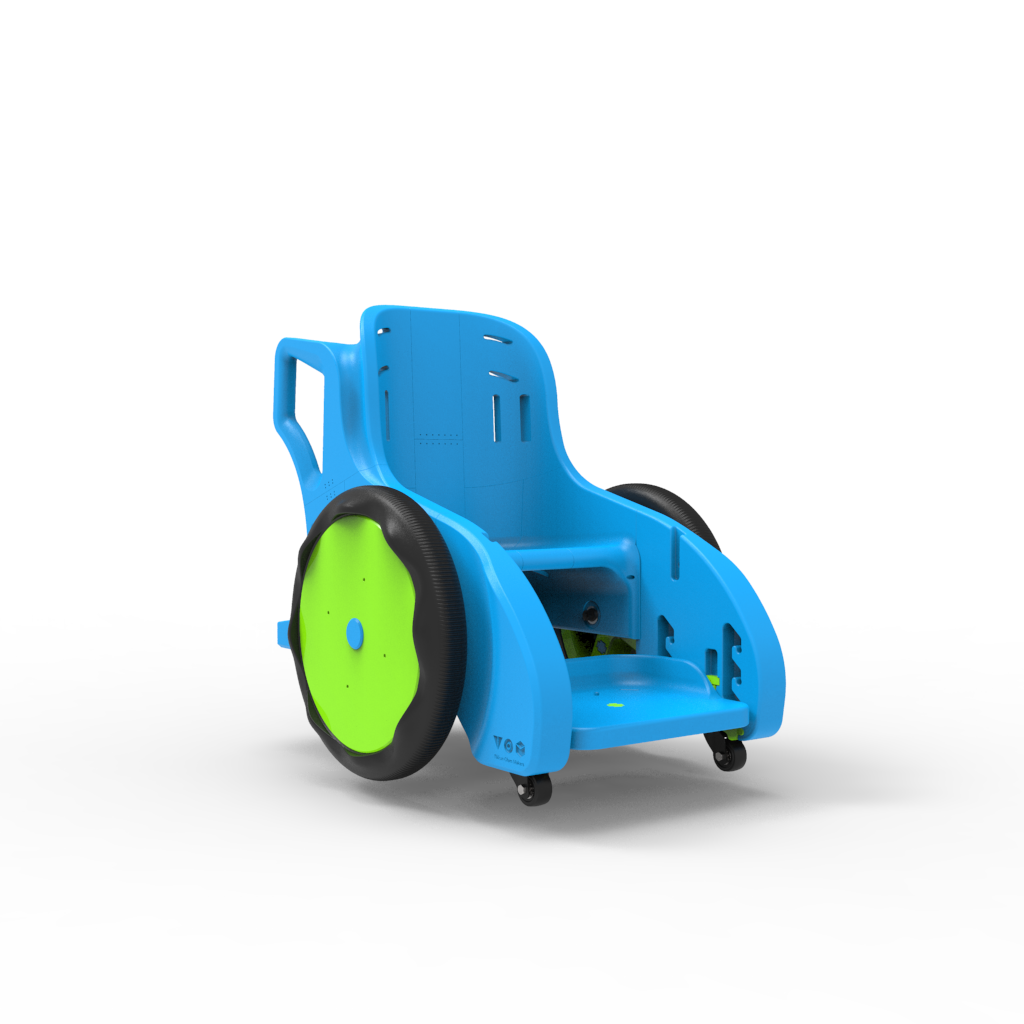

Introducing a first-of-its-kind 3D-printed mobility concept developed in collaboration with Tikkun Olam Makers (TOM) and MakeGood. The TMT is an open-source prototype intended for research, testing, and educational purposes.
Our team at LINK has donated over 300 hours to help develop this concept.
This project page is intended to document the research and design process, not to present a finished consumer or medical product.
Photos courtesy of TOM and Makegood.
TMT History
TMT History
DESIGN HISTORY |
The original toddler mobility trainer was developed at TOM as an affordable and easily made mobility trainer suitable for younger ages in indoor environments. The project was developed with the help of Go Baby Go Israel, Shenkar College students, TOM Israel Summer 2022 Interns, and the TOM Global R&D Team.
Many toddlers and young children with disabilities lack the physical strength or coordination needed to crawl or walk independently-- even though they may be ready to explore and engage with their environment. Wheelchair options for this age group are rarely available, affordable, or covered by most insurance providers. Without access to size-appropriate mobility devices, children are forced to wait until they are older to move independently- delaying development, exploration, and inclusion at a critical stage.

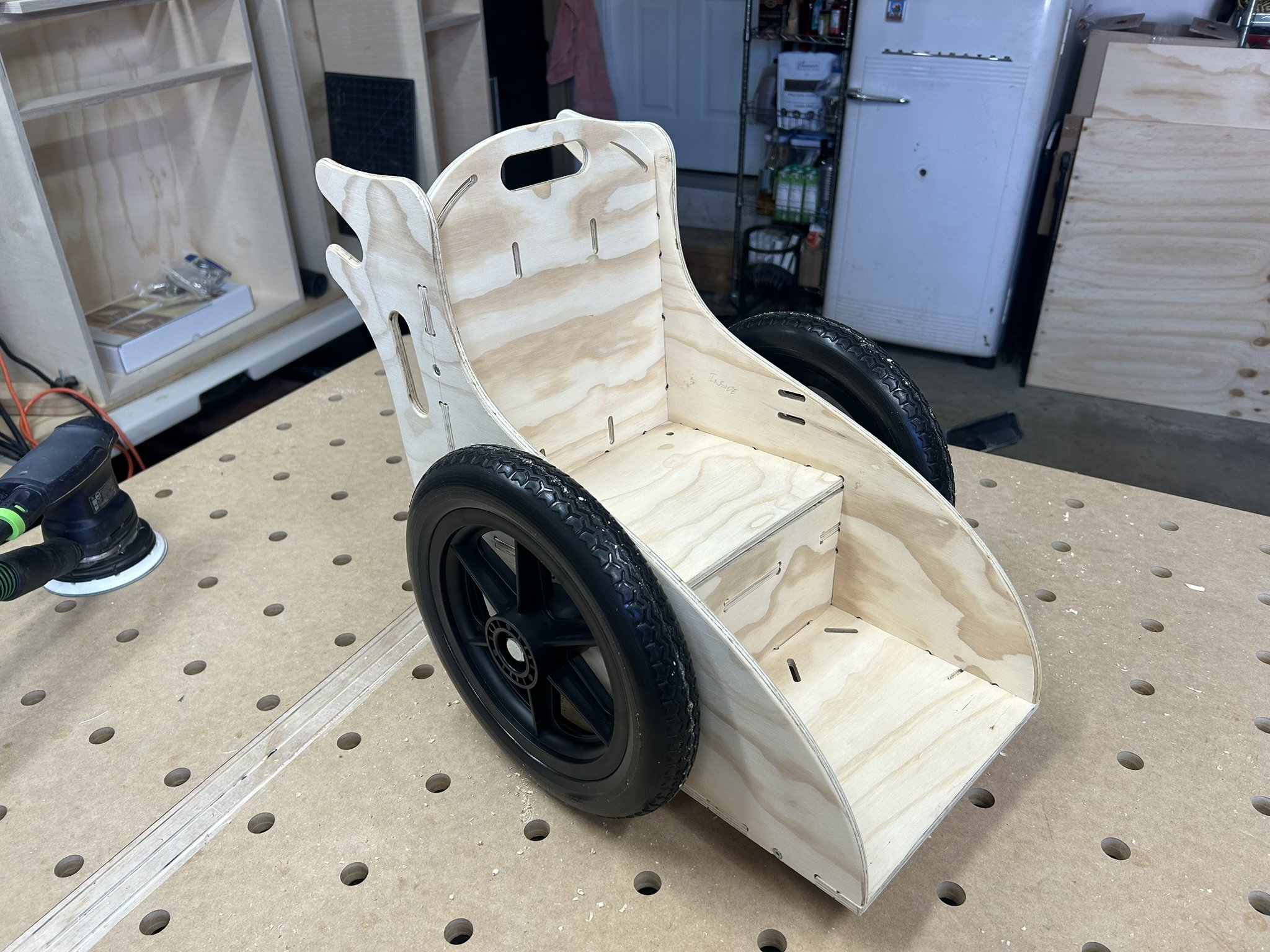

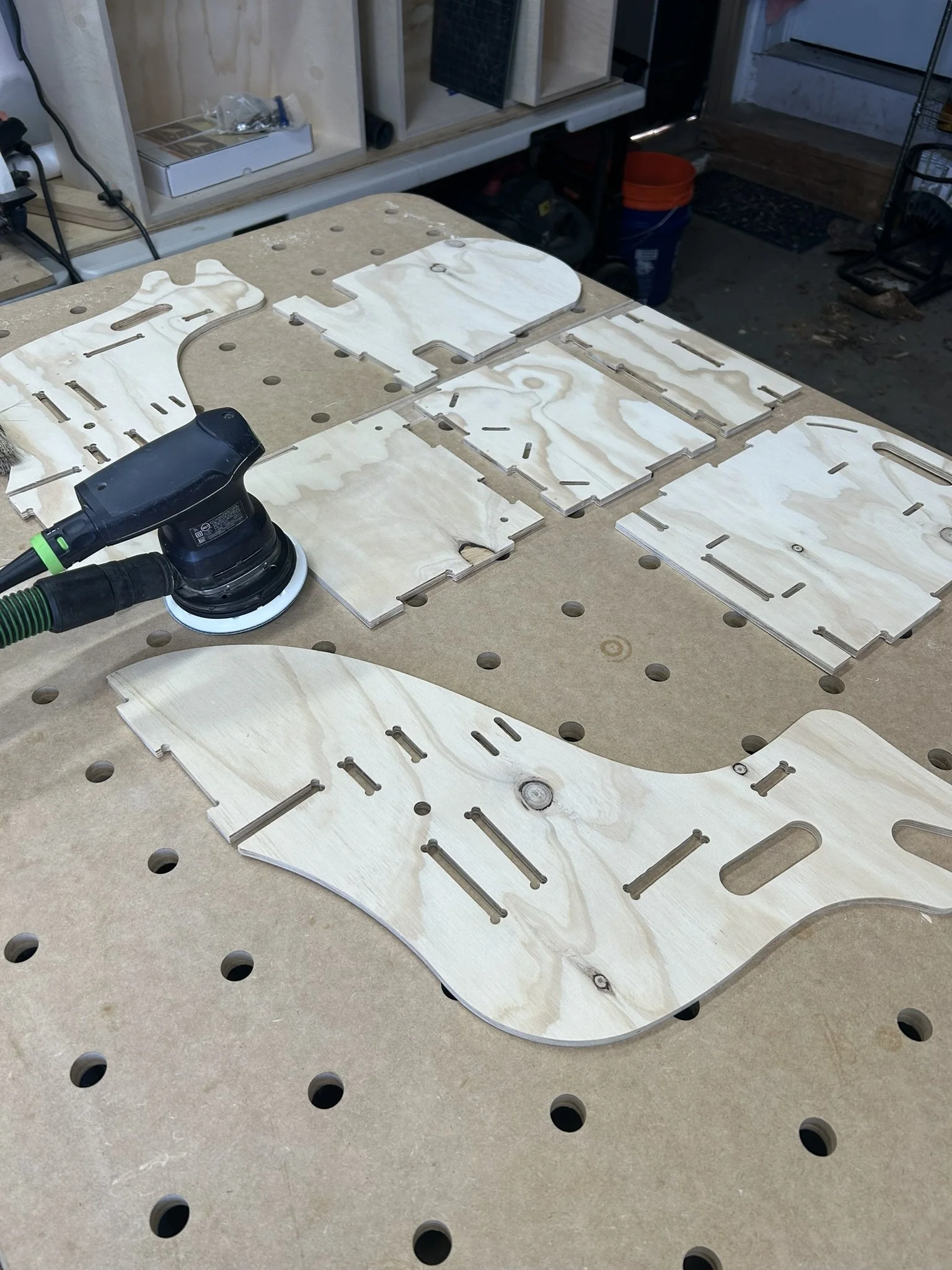

The original Toddler Mobility Trainer is constructed from smooth-sanded High-Quality Birch Plywood, featuring metal hardware and an upholstered back and seat cushion. The TMT was thoughtfully designed by industrial designers and engineers, along with the supervision of Physical and Occupational Therapists.
TMT DEV
TMT DEV
DEVELOPMENT |
Our team volunteered to take on the challenge presented by MakeGood to transform the existing TMT design into a prototype concept that could be printed on a consumer level FDM 3D Printer.

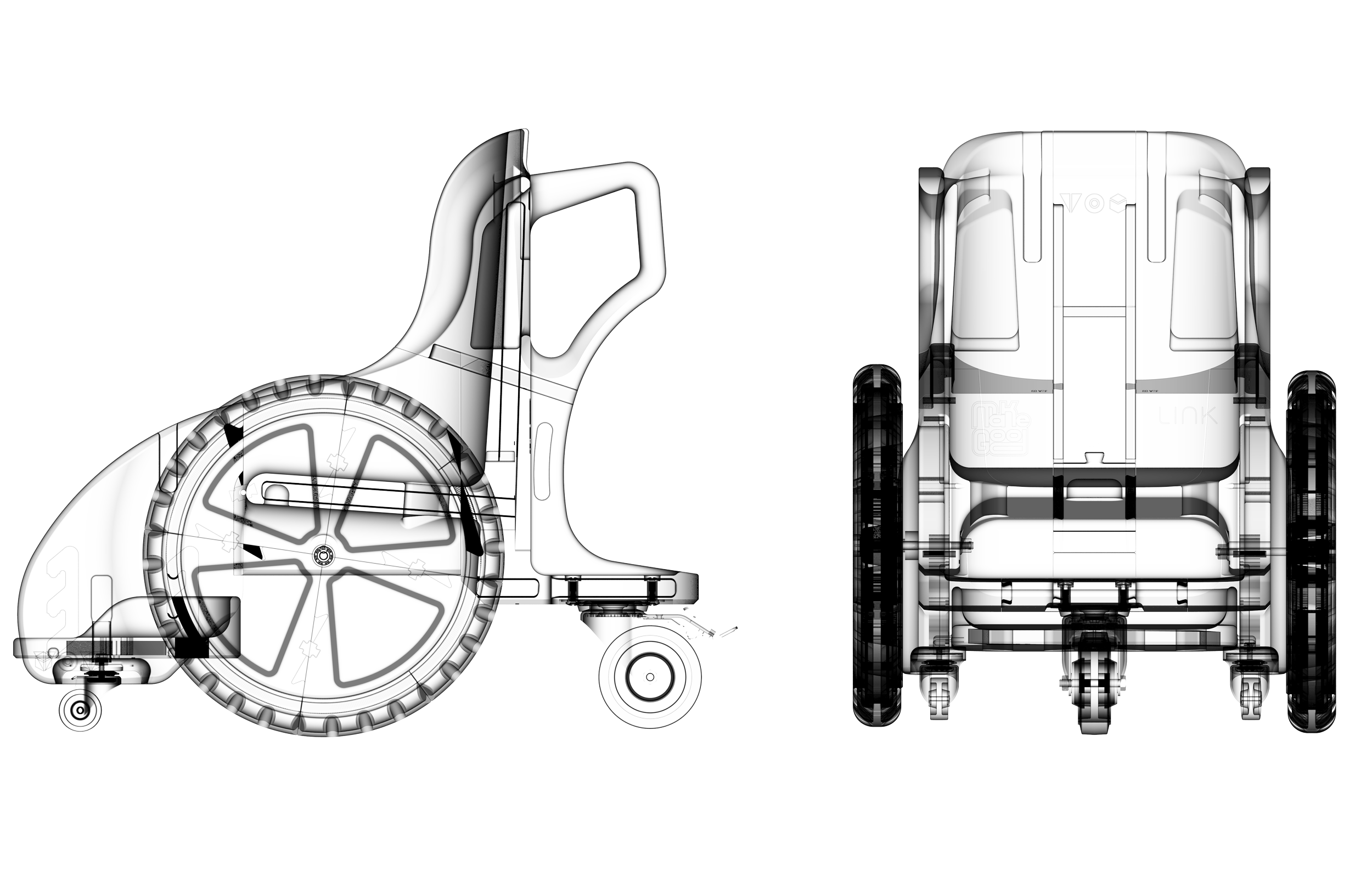

Utilizing the ergonomic hardpoints of the existing TMT we iterated on various design directions to evolve both the form and construction of the trainer. We wanted to increase the approachable feel of the design while maintaining elements of the previous design.

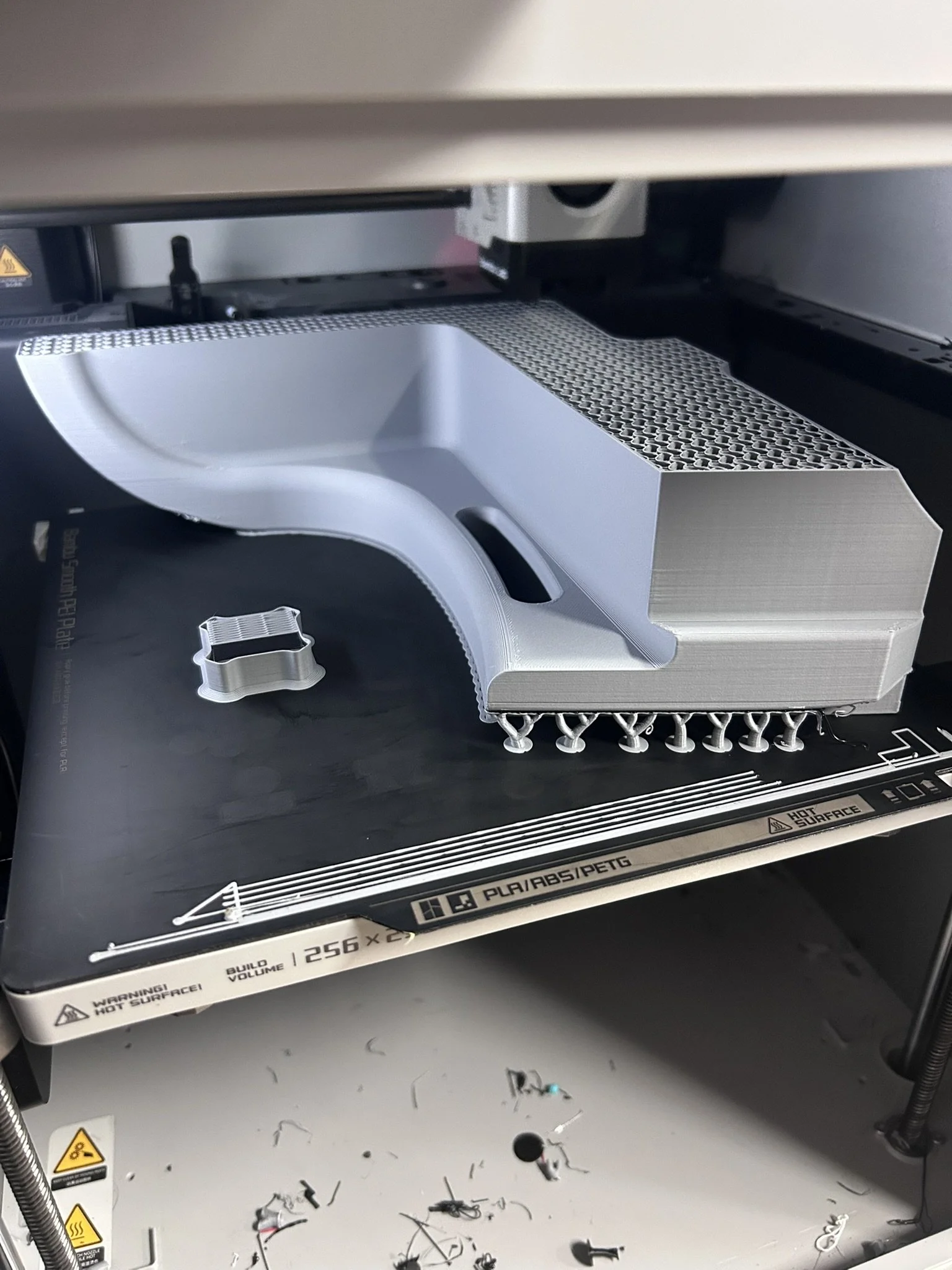

The biggest challenge was to split the design into sections that could fit on a standard 3D Printer to later be assembled.
We were able to get the entire assembly aside from the seat and straps onto less than twenty build plates. Each split line between parts was carefully selected as to minimize the number of joints needed while placing them in areas along the frame that would allow parts to fit within the build envelope.
Our goal was to eliminate the need for any fasteners or glue for the assembly of the frame in order to reduce complexity, part count, and potential for improper assembly. This resulted in the exploration of traditional woodworking joints that have been used for thousands of years before modern adhesives and hardware were created. We also wanted to minimize the types of joints used to keep the assembly process simple for users. We focused on two primary joints throughout the design:

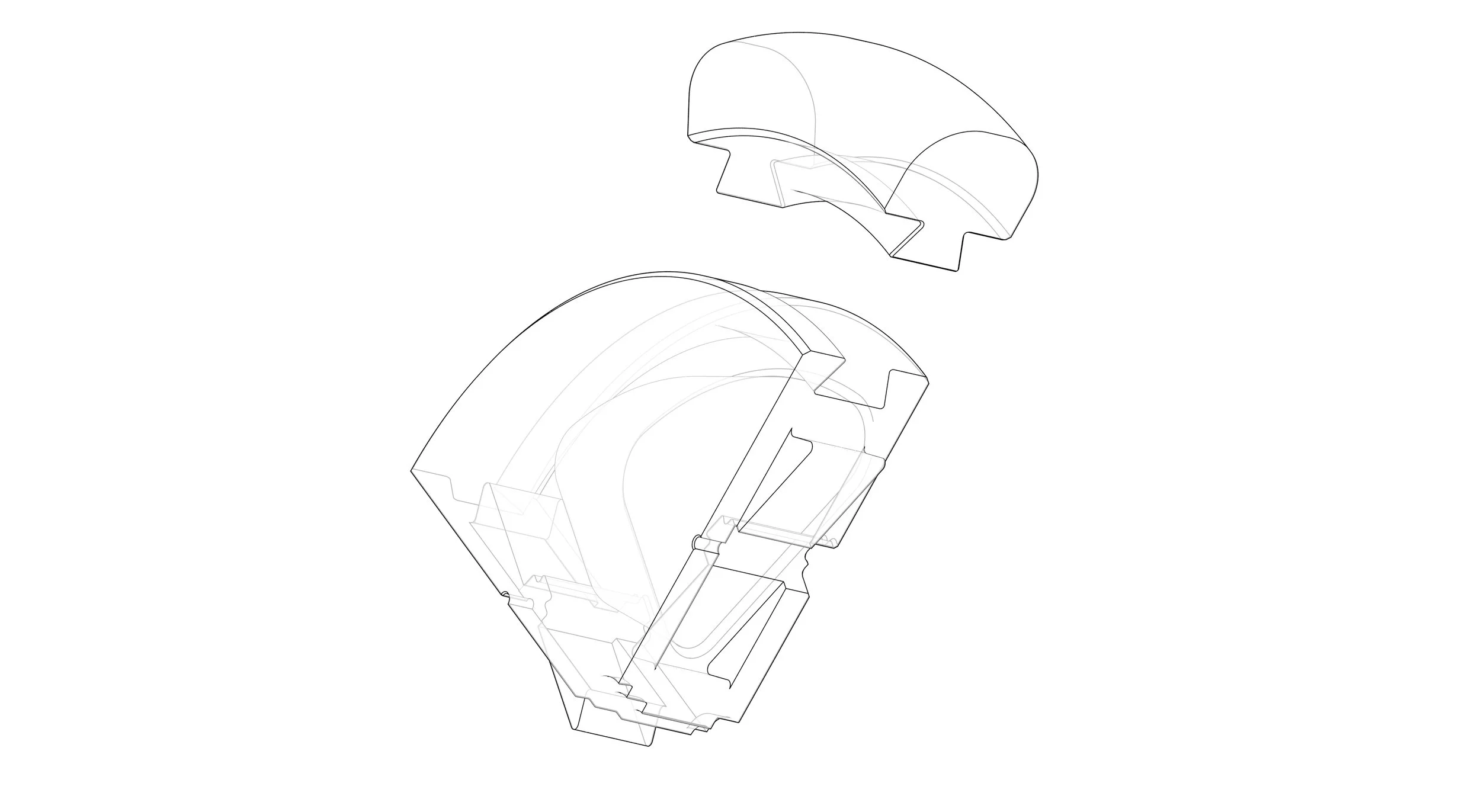

Scarf Joint
Scarf joints are long, tapered splices used to join two pieces of wood end-to-end. They have been employed since antiquity, especially in shipbuilding, timber framing, and bridge construction where long spans of timber were needed. Early examples appear in Egyptian and Roman engineering, often reinforced with wooden pegs, iron straps, or wedges. Their strength and ability to distribute stress made them appealing for this application. This joint was also identified as one of the strongest 3D printed woodworking joint by Mike at NeedItMakeIt in his video series here.
Sliding Dovetail Joint
Dovetail joints are interlocking, wedge-shaped carpentry joints. They originated in ancient Egypt and China, with examples dating back over 3,000 years in wooden furniture and burial chests. Their self-locking design, which resists pulling apart, made them ideal for drawers, boxes, and cabinetry long before modern adhesives. These joints were identified as extremely simple and intuitive ways to make basic sliding connections on the trainer assembly.

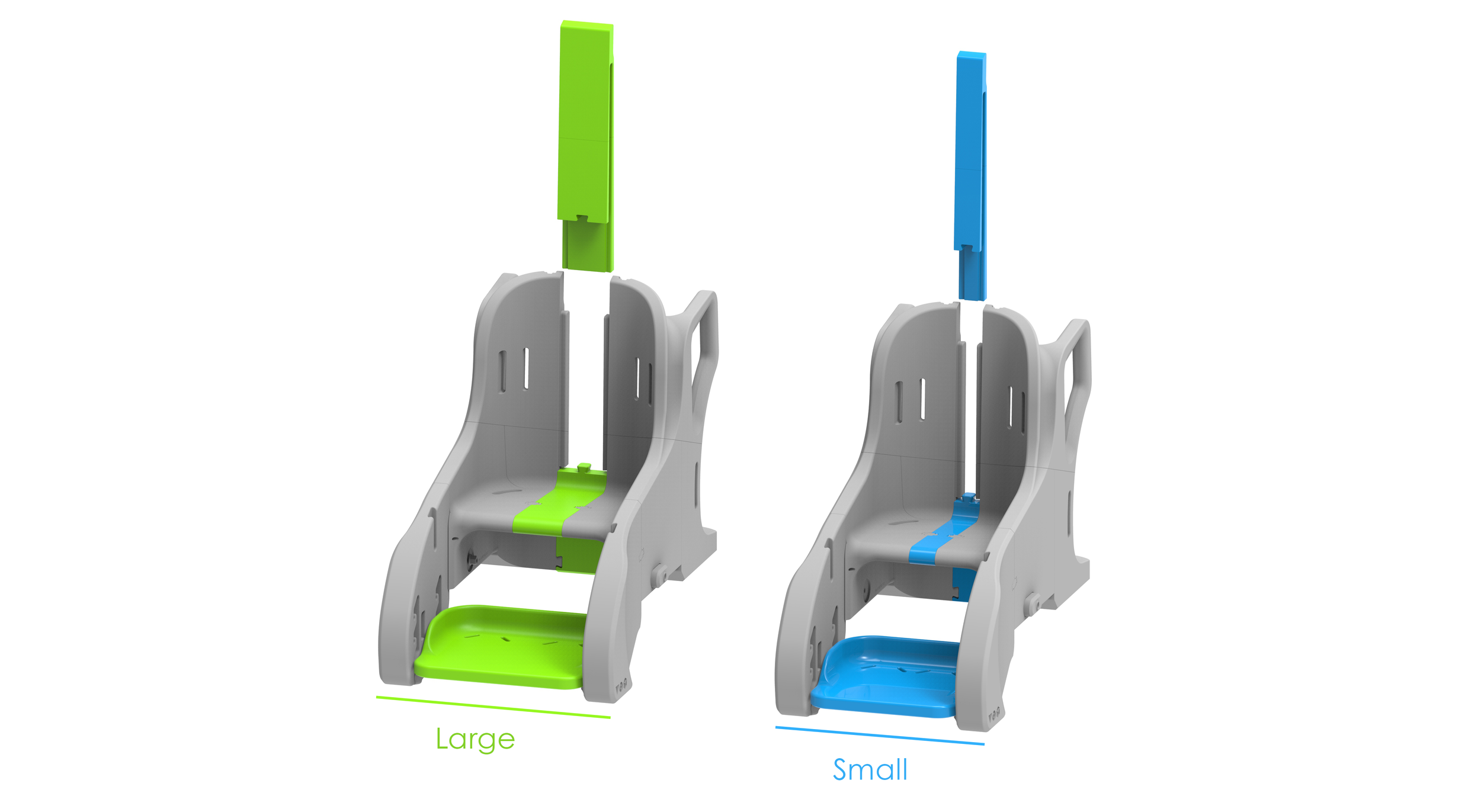

The design features fourteen under squinted stop splayed scarf joints and twenty two sliding dovetail joints. These two joint styles provide intuitive assembly while also allowing users to disassemble the chair if needed. This somewhat modular approach also allows for users to swap out parts to adjust the device width.

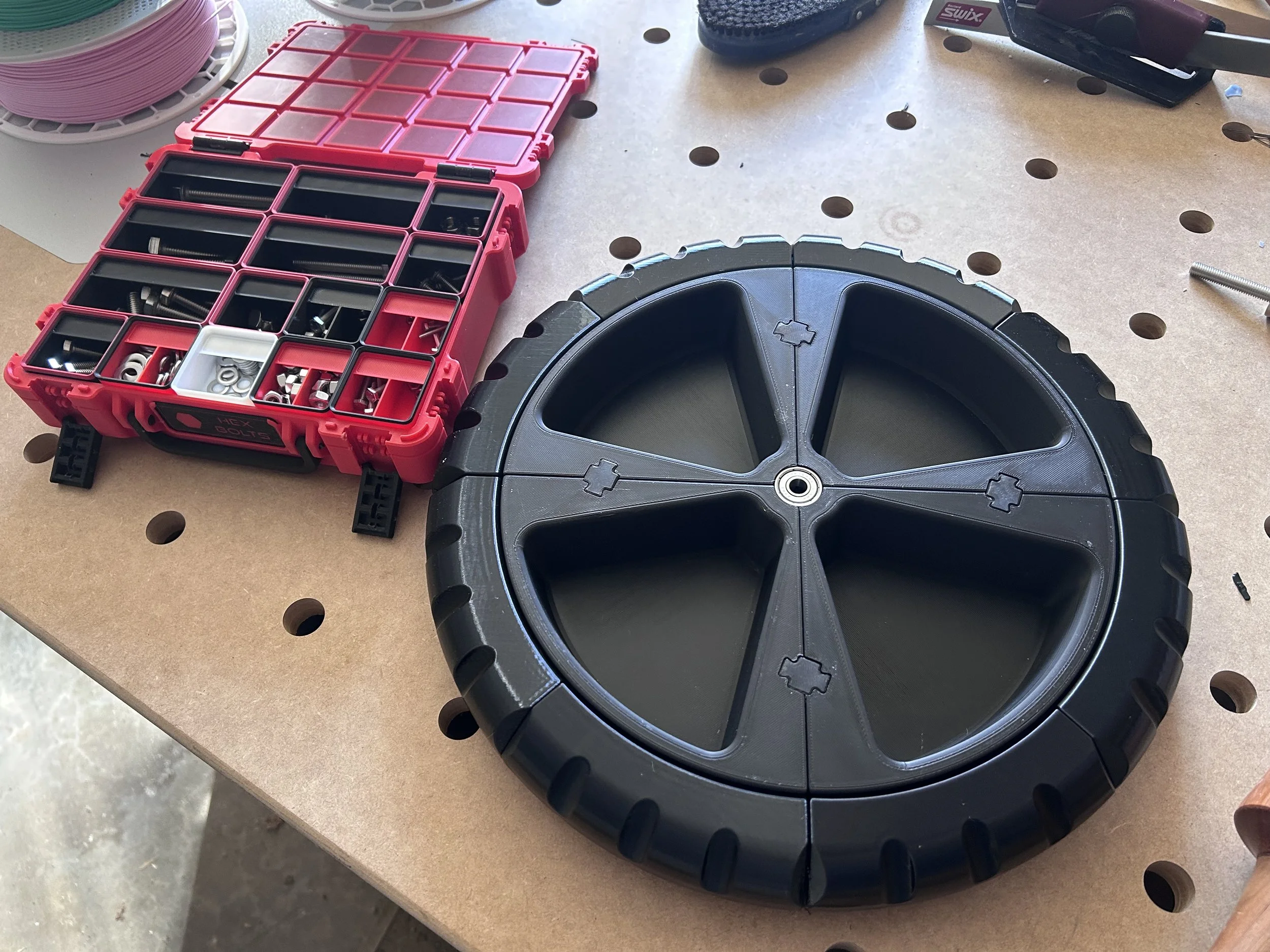

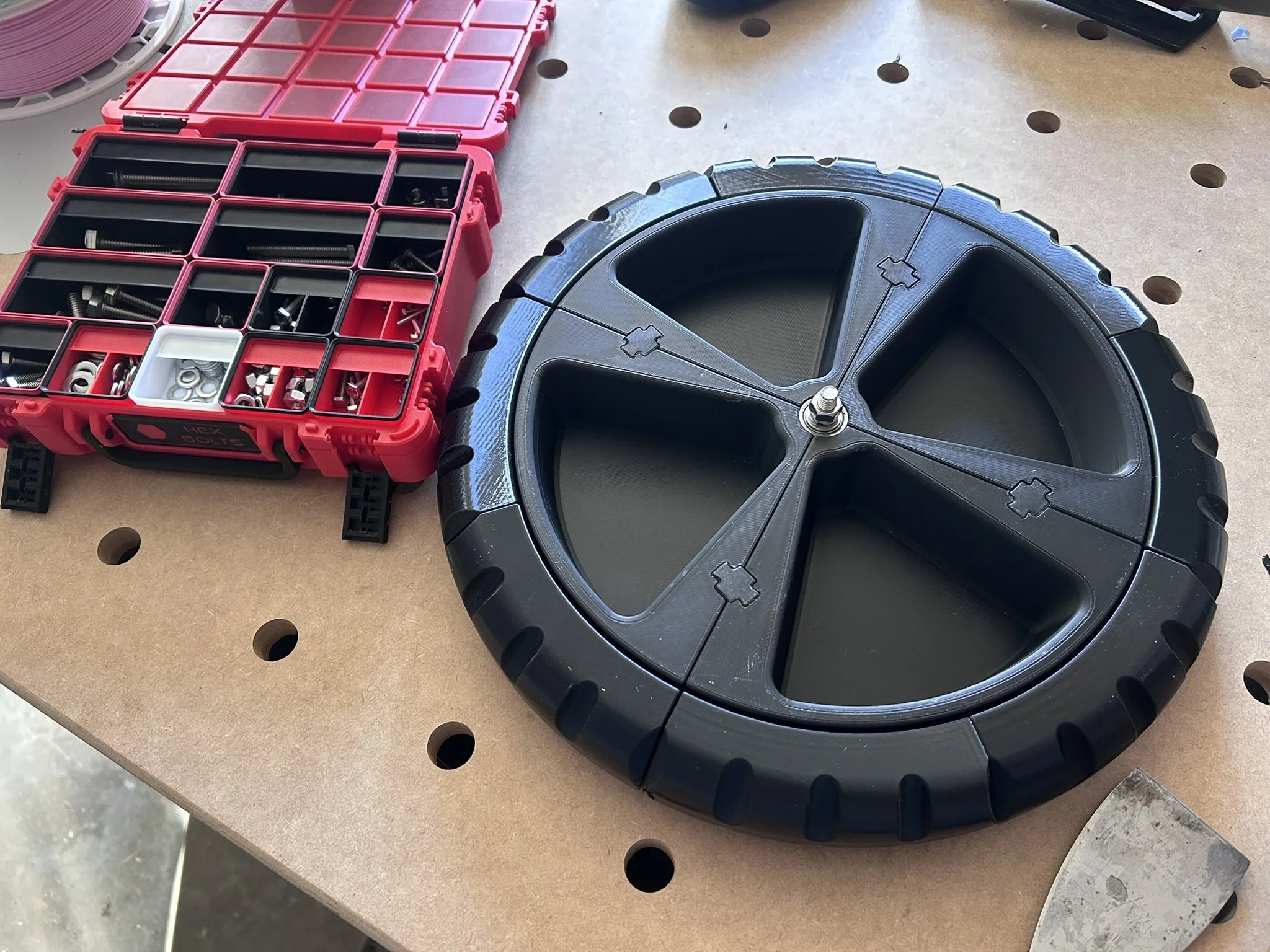

We also took on the challenge of printing the large wheel for the assembly. Wheels can be purchased from various suppliers but finding a singular, inexpensive, global source was not possible. We narrowed in on standard hardware available around the world and designed the wheel to be printable in around 20 different parts including the rim, tire, pins, bearings, nut and bolt.

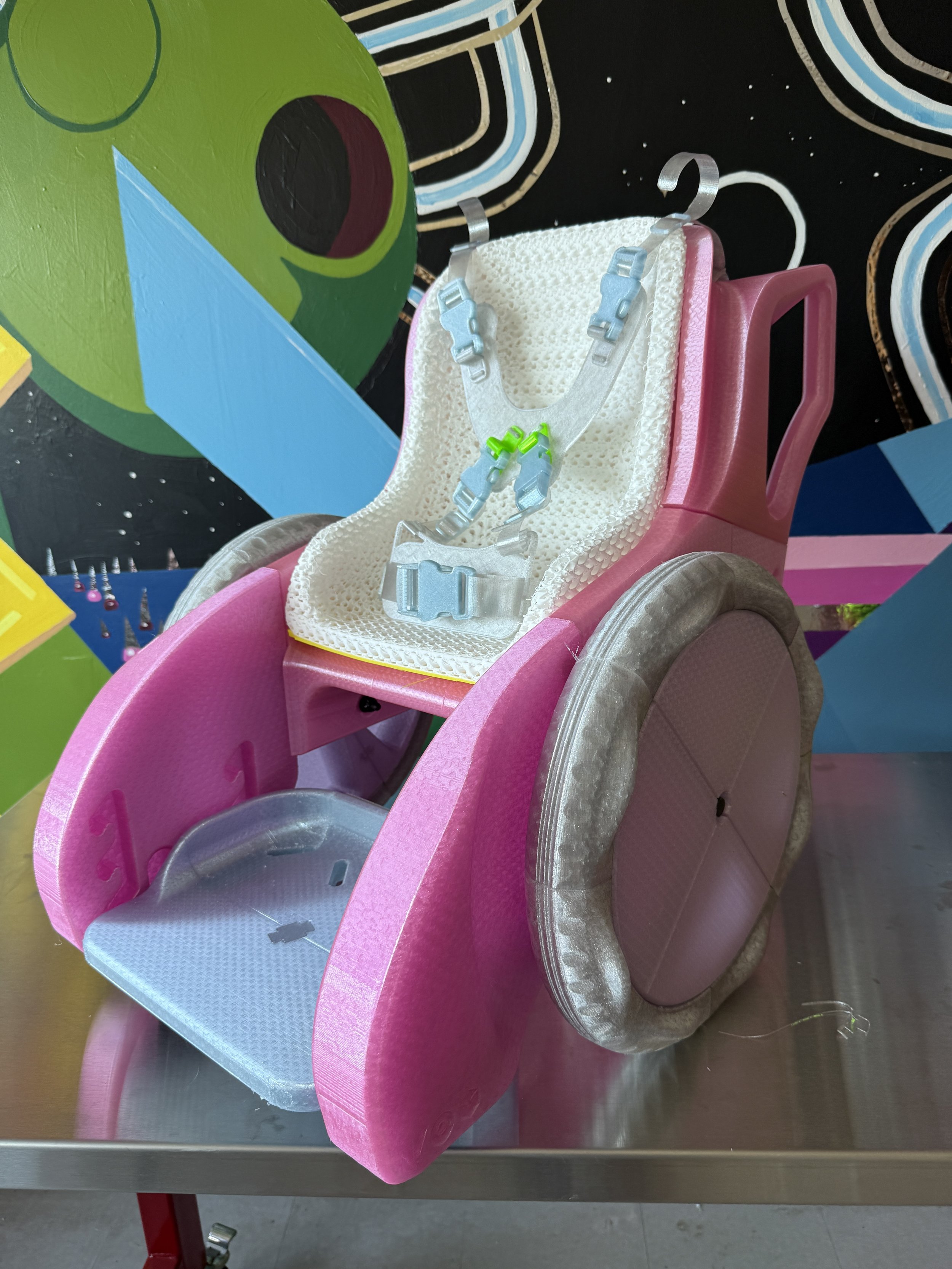

The team at Makegood led development on seating, straps, harnesses, and tire grips to ensure comfort and security for kids during prototype testing.

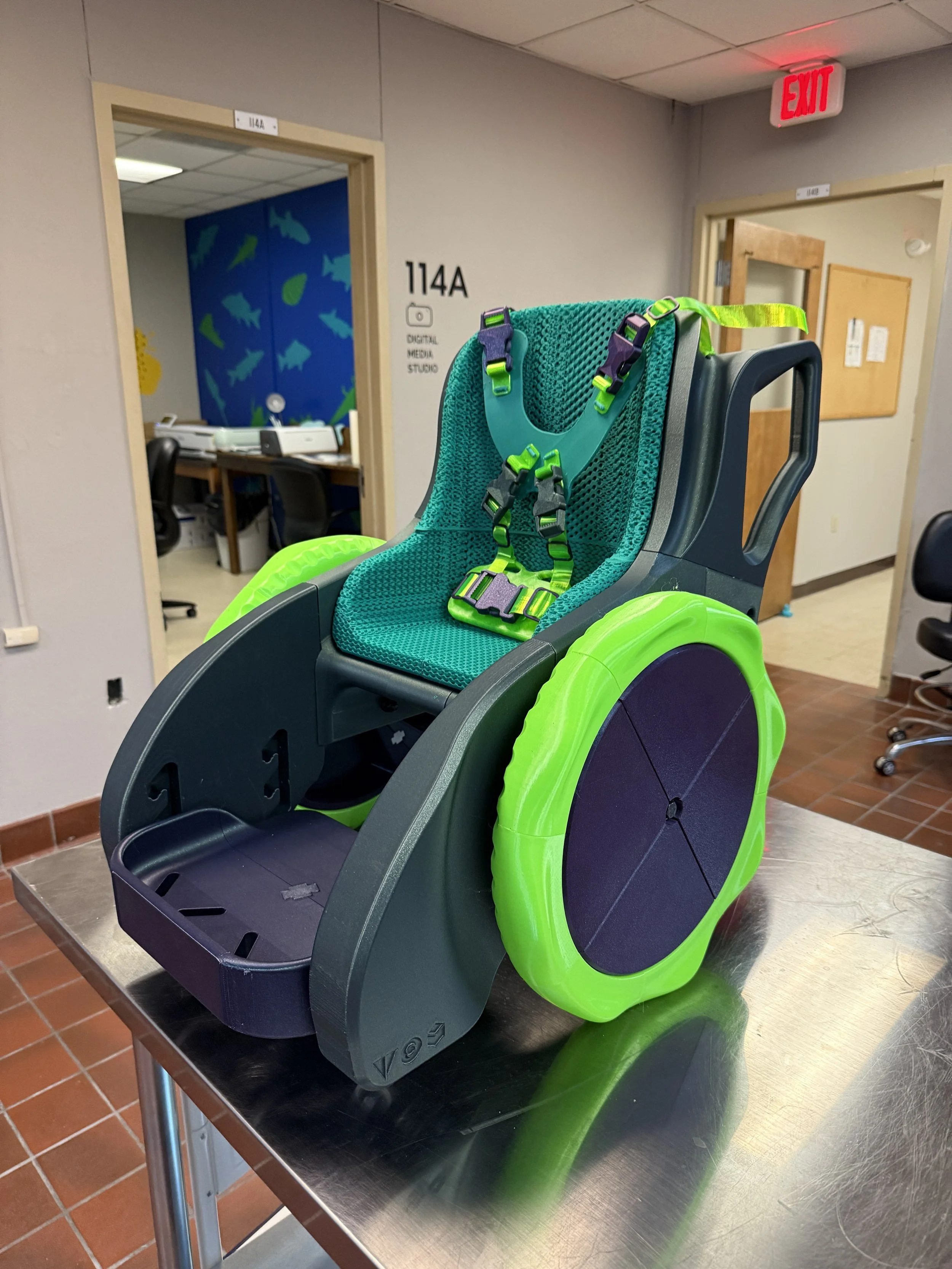

Multiple rounds of prototypes were created by all teams involved to refine the design. TOM and MakeGood were able to access their network of experts to provide valuable feedback on the prototype.
TMT V3
TMT V3
This project was created in collaboration with designers, engineers, therapists, and disability advocates who shared insights into mobility challenges and inclusive design.
The intention of sharing this work is to contribute to the open design community and encourage thoughtful experimentation, research, and discussion around low-cost, locally manufactured assistive concepts.
Independent organizations may choose to build upon this work under their own responsibility and governance.
The prototype concept is published into the public domain and accessible for free.
The two organizations we worked with have ways for people to get involved and find out more:
TOM - Tikkun Olam Makers - is a global movement of communities that creates and disseminates affordable solutions to neglected challenges of people living with disabilities, the elderly and the poor.
The TOM Movement is made up of local TOM Communities and LINK PBC is proud to be the US mountain west central hub of this network.
MakeGood is an innovative non-profit that creates custom assistive devices. They support individuals with special needs, disabilities, and chronic conditions—empowering them through adaptive solutions. They have been building and gifting TMT’s to families that need them in the United States.
Noam, the founder of MakeGood, was the catalyst in instigating the push for a 3D printed TMT as he knew it would enable his team to fabricate these devices more efficiently to meet the ever growing list of children and families in need of them.
Disclaimer:
This project page is for documentation and educational purposes only. LINK PBC does not manufacture, distribute, or certify physical devices or design files related to the Toddler Mobility Trainer. Any physical device produced by third parties is fabricated and used at their own risk. This project is not a certified medical device. Users should consult appropriate professionals and follow local regulations before fabricating or using any physical device derived from this work. No claims are made regarding the safety, durability, regulatory compliance, or clinical effectiveness of any device derived from this concept.
